🧪 Testing
Network
Wi-Fi
Built-in Wi-Fi based on the MediaTek MT7921AUN chip — a Wi-Fi 6E (802.11ax) and Bluetooth 5.2 combo, also used in high-performance USB wireless adapters like the ALFA AWUS036AXML. It supports the 2.4 GHz, 5 GHz, and 6 GHz bands.

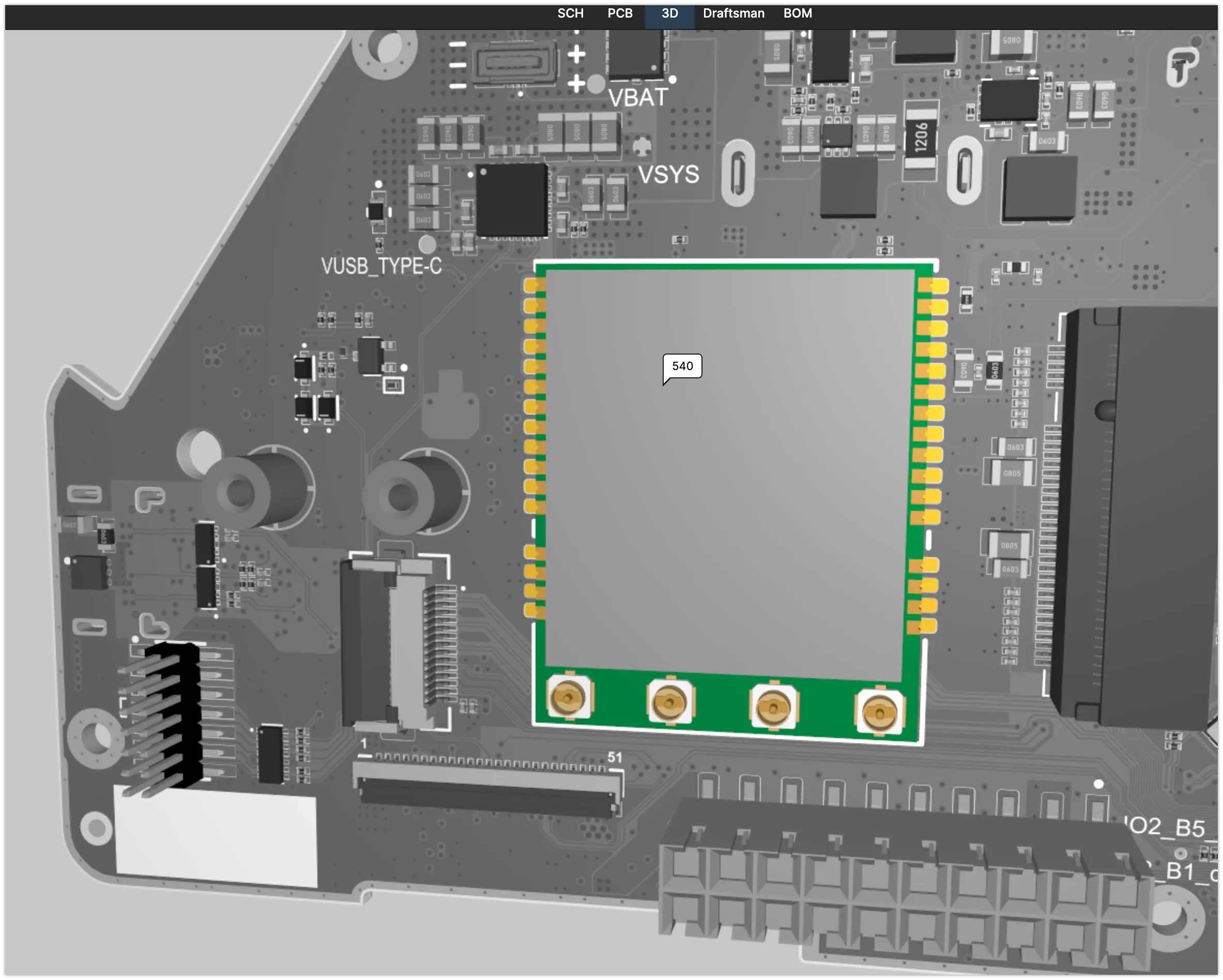

Wi-Fi + Bluetooth module WXT2AM2101, based on the MediaTek MT7921AUN
Tests
- Access Point (AP) — single AP mode across all channels, bands, output power, and encryption modes.
- Client (STA) — station mode, connecting to an access point.
- AP+STA SCC — simultaneous client and hotspot on the same band and channel.
- DBDC — dual-band dual-concurrent operation.
- Monitor mode — promiscuous capture and PMKID sniffing.
Concurrency support (summary)
The MT7921AUN is a single-radio part, so simultaneous modes share one radio. What runs at the same time:
Configuration | Status | Notes |
|---|---|---|
Single AP or STA (2.4 / 5 / 6 GHz) | ✅ | mainline mt7921u driver |
AP + STA, same channel (SCC) | ✅ | mainline driver — see AP+STA SCC |
AP + STA, different bands (DBDC) | ✅ | needs a one-line mt76 interface-combination patch — see DBDC |
AP + AP (two hotspots, different bands) | ❌ | only the first-started AP beacons — no client to drive the channel-switch arbiter |
STA + 2 APs (3rd BSS context) | ❌ | the third BSS gets no channel/airtime — hardware ceiling of 2 concurrent BSS contexts |
The hardware reports DBDC-capable (MT_HW_BOUND BIT(5) = 1) and the firmware accepts a concurrent AP; the practical STA-uplink + AP-hotspot on two bands is unlocked by the driver patch documented on the DBDC page. 6 GHz is available (Wi-Fi 6E; under ETSI only the low sub-band 5945–6425 MHz, indoor).
MT7921AUN chipset info
Valid interface combinations
$ iw phy phy0 info | sed -n '/valid interface combinations/,/HT Capability/p'
valid interface combinations:
* #{ managed, P2P-client } <= 2, #{ P2P-GO } <= 1, #{ P2P-device } <= 1,
total <= 3, #channels <= 2
* #{ managed, P2P-client } <= 2, #{ AP } <= 1, #{ P2P-device } <= 1,
total <= 3, #channels <= 1
HT Capability overrides:$ ethtool -i wlxb06b11673ade
driver: mt7921u
version: 7.1.0-g7fd25013c28b
firmware-version: ____010000-20260224110949
expansion-rom-version:
bus-info: 2-1.1:1.3
supports-statistics: yes
supports-test: no
supports-eeprom-access: no
supports-register-dump: no
supports-priv-flags: no$ sudo iw phy phy0 info
Wiphy phy0
wiphy index: 0
max # scan SSIDs: 4
max scan IEs length: 482 bytes
max # sched scan SSIDs: 10
max # match sets: 16
Retry short limit: 7
Retry long limit: 4
Coverage class: 0 (up to 0m)
Device supports AP-side u-APSD.
Device supports T-DLS.
Supported Ciphers:
* WEP40 (00-0f-ac:1)
* WEP104 (00-0f-ac:5)
* TKIP (00-0f-ac:2)
* CCMP-128 (00-0f-ac:4)
* CCMP-256 (00-0f-ac:10)
* GCMP-128 (00-0f-ac:8)
* GCMP-256 (00-0f-ac:9)
* CMAC (00-0f-ac:6)
* CMAC-256 (00-0f-ac:13)
* GMAC-128 (00-0f-ac:11)
* GMAC-256 (00-0f-ac:12)
Available Antennas: TX 0x3 RX 0x3
Configured Antennas: TX 0x3 RX 0x3
Supported interface modes:
* managed
* AP
* AP/VLAN
* monitor
* P2P-client
* P2P-GO
* P2P-device
Band 1:
Capabilities: 0x9ff
RX LDPC
HT20/HT40
SM Power Save disabled
RX Greenfield
RX HT20 SGI
RX HT40 SGI
TX STBC
RX STBC 1-stream
Max AMSDU length: 7935 bytes
No DSSS/CCK HT40
Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
Minimum RX AMPDU time spacing: No restriction (0x00)
HT TX/RX MCS rate indexes supported: 0-15
HE Iftypes: managed
HE MAC Capabilities (0x08011a000040):
+HTC HE Supported
Trigger Frame MAC Padding Duration: 2
OM Control
Maximum A-MPDU Length Exponent: 3
A-MSDU in A-MPDU
HE PHY Capabilities: (0x2270ce120dc0b306423f00):
HE40/2.4GHz
242 tone RUs/2.4GHz
Device Class: 1
LDPC Coding in Payload
HE SU PPDU with 1x HE-LTF and 0.8us GI
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
SU Beamformee
Beamformee STS <= 80Mhz: 3
Ng = 16 SU Feedback
Ng = 16 MU Feedback
Codebook Size SU Feedback
Codebook Size MU Feedback
Triggered CQI Feedback
Partial Bandwidth Extended Range
PPE Threshold Present
Power Boost Factor ar
HE SU PPDU & HE PPDU 4x HE-LTF 0.8us GI
20MHz in 40MHz HE PPDU 2.4GHz
DCM Max BW: 1
Longer Than 16HE SIG-B OFDM Symbols
Non-Triggered CQI Feedback
TX 1024-QAM
RX 1024-QAM
RX Full BW SU Using HE MU PPDU with Compression SIGB
RX Full BW SU Using HE MU PPDU with Non-Compression SIGB
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x19 0x1c 0xc7 0x71
HE Iftypes: AP
HE MAC Capabilities (0x00011a081044):
+HTC HE Supported
BSR
OM Control
Maximum A-MPDU Length Exponent: 3
BQR
A-MSDU in A-MPDU
OM Control UL MU Data Disable RX
HE PHY Capabilities: (0x0220ce120000a000000c00):
HE40/2.4GHz
LDPC Coding in Payload
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
Partial Bandwidth Extended Range
PPE Threshold Present
TX 1024-QAM
RX 1024-QAM
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x19 0x1c 0xc7 0x71
Bitrates (non-HT):
* 1.0 Mbps (short preamble supported)
* 2.0 Mbps (short preamble supported)
* 5.5 Mbps (short preamble supported)
* 11.0 Mbps (short preamble supported)
* 6.0 Mbps
* 9.0 Mbps
* 12.0 Mbps
* 18.0 Mbps
* 24.0 Mbps
* 36.0 Mbps
* 48.0 Mbps
* 54.0 Mbps
Frequencies:
* 2412.0 MHz [1] (20.0 dBm)
* 2417.0 MHz [2] (20.0 dBm)
* 2422.0 MHz [3] (20.0 dBm)
* 2427.0 MHz [4] (20.0 dBm)
* 2432.0 MHz [5] (20.0 dBm)
* 2437.0 MHz [6] (20.0 dBm)
* 2442.0 MHz [7] (20.0 dBm)
* 2447.0 MHz [8] (20.0 dBm)
* 2452.0 MHz [9] (20.0 dBm)
* 2457.0 MHz [10] (20.0 dBm)
* 2462.0 MHz [11] (20.0 dBm)
* 2467.0 MHz [12] (20.0 dBm) (no IR)
* 2472.0 MHz [13] (20.0 dBm) (no IR)
* 2484.0 MHz [14] (20.0 dBm) (no IR)
Band 2:
Capabilities: 0x9ff
RX LDPC
HT20/HT40
SM Power Save disabled
RX Greenfield
RX HT20 SGI
RX HT40 SGI
TX STBC
RX STBC 1-stream
Max AMSDU length: 7935 bytes
No DSSS/CCK HT40
Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
Minimum RX AMPDU time spacing: No restriction (0x00)
HT TX/RX MCS rate indexes supported: 0-15
VHT Capabilities (0x339071b2):
Max MPDU length: 11454
Supported Channel Width: neither 160 nor 80+80
RX LDPC
short GI (80 MHz)
TX STBC
SU Beamformee
MU Beamformee
RX antenna pattern consistency
TX antenna pattern consistency
VHT RX MCS set:
1 streams: MCS 0-9
2 streams: MCS 0-9
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
VHT RX highest supported: 0 Mbps
VHT TX MCS set:
1 streams: MCS 0-9
2 streams: MCS 0-9
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
VHT TX highest supported: 0 Mbps
VHT extended NSS: supported
HE Iftypes: managed
HE MAC Capabilities (0x08011a000040):
+HTC HE Supported
Trigger Frame MAC Padding Duration: 2
OM Control
Maximum A-MPDU Length Exponent: 3
A-MSDU in A-MPDU
HE PHY Capabilities: (0x4470ce120dc0b306423f00):
HE40/HE80/5GHz
242 tone RUs/5GHz
Device Class: 1
LDPC Coding in Payload
HE SU PPDU with 1x HE-LTF and 0.8us GI
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
SU Beamformee
Beamformee STS <= 80Mhz: 3
Ng = 16 SU Feedback
Ng = 16 MU Feedback
Codebook Size SU Feedback
Codebook Size MU Feedback
Triggered CQI Feedback
Partial Bandwidth Extended Range
PPE Threshold Present
Power Boost Factor ar
HE SU PPDU & HE PPDU 4x HE-LTF 0.8us GI
20MHz in 40MHz HE PPDU 2.4GHz
DCM Max BW: 1
Longer Than 16HE SIG-B OFDM Symbols
Non-Triggered CQI Feedback
TX 1024-QAM
RX 1024-QAM
RX Full BW SU Using HE MU PPDU with Compression SIGB
RX Full BW SU Using HE MU PPDU with Non-Compression SIGB
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x79 0x1c 0xc7 0x71 0x1c 0xc7 0x71
HE Iftypes: AP
HE MAC Capabilities (0x00011a081044):
+HTC HE Supported
BSR
OM Control
Maximum A-MPDU Length Exponent: 3
BQR
A-MSDU in A-MPDU
OM Control UL MU Data Disable RX
HE PHY Capabilities: (0x0420ce120000a000000c00):
HE40/HE80/5GHz
LDPC Coding in Payload
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
Partial Bandwidth Extended Range
PPE Threshold Present
TX 1024-QAM
RX 1024-QAM
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x79 0x1c 0xc7 0x71 0x1c 0xc7 0x71
Bitrates (non-HT):
* 6.0 Mbps
* 9.0 Mbps
* 12.0 Mbps
* 18.0 Mbps
* 24.0 Mbps
* 36.0 Mbps
* 48.0 Mbps
* 54.0 Mbps
Frequencies:
* 5180.0 MHz [36] (20.0 dBm) (no IR)
* 5200.0 MHz [40] (20.0 dBm)
* 5220.0 MHz [44] (20.0 dBm) (no IR)
* 5240.0 MHz [48] (20.0 dBm)
* 5260.0 MHz [52] (20.0 dBm) (no IR, radar detection)
* 5280.0 MHz [56] (20.0 dBm) (no IR, radar detection)
* 5300.0 MHz [60] (20.0 dBm) (no IR, radar detection)
* 5320.0 MHz [64] (20.0 dBm) (no IR, radar detection)
* 5500.0 MHz [100] (20.0 dBm) (no IR, radar detection)
* 5520.0 MHz [104] (20.0 dBm) (no IR, radar detection)
* 5540.0 MHz [108] (20.0 dBm) (no IR, radar detection)
* 5560.0 MHz [112] (20.0 dBm) (no IR, radar detection)
* 5580.0 MHz [116] (20.0 dBm) (no IR, radar detection)
* 5600.0 MHz [120] (20.0 dBm) (no IR, radar detection)
* 5620.0 MHz [124] (20.0 dBm) (no IR, radar detection)
* 5640.0 MHz [128] (20.0 dBm) (no IR, radar detection)
* 5660.0 MHz [132] (20.0 dBm) (no IR, radar detection)
* 5680.0 MHz [136] (20.0 dBm) (no IR, radar detection)
* 5700.0 MHz [140] (20.0 dBm) (no IR, radar detection)
* 5720.0 MHz [144] (20.0 dBm) (no IR, radar detection)
* 5745.0 MHz [149] (20.0 dBm) (no IR)
* 5765.0 MHz [153] (20.0 dBm)
* 5785.0 MHz [157] (20.0 dBm) (no IR)
* 5805.0 MHz [161] (20.0 dBm) (no IR)
* 5825.0 MHz [165] (20.0 dBm) (no IR)
* 5845.0 MHz [169] (disabled)
* 5865.0 MHz [173] (disabled)
* 5885.0 MHz [177] (disabled)
Band 4:
HE Iftypes: managed
HE MAC Capabilities (0x08011a000040):
+HTC HE Supported
Trigger Frame MAC Padding Duration: 2
OM Control
Maximum A-MPDU Length Exponent: 3
A-MSDU in A-MPDU
HE PHY Capabilities: (0x4470ce120dc0b306423f00):
HE40/HE80/5GHz
242 tone RUs/5GHz
Device Class: 1
LDPC Coding in Payload
HE SU PPDU with 1x HE-LTF and 0.8us GI
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
SU Beamformee
Beamformee STS <= 80Mhz: 3
Ng = 16 SU Feedback
Ng = 16 MU Feedback
Codebook Size SU Feedback
Codebook Size MU Feedback
Triggered CQI Feedback
Partial Bandwidth Extended Range
PPE Threshold Present
Power Boost Factor ar
HE SU PPDU & HE PPDU 4x HE-LTF 0.8us GI
20MHz in 40MHz HE PPDU 2.4GHz
DCM Max BW: 1
Longer Than 16HE SIG-B OFDM Symbols
Non-Triggered CQI Feedback
TX 1024-QAM
RX 1024-QAM
RX Full BW SU Using HE MU PPDU with Compression SIGB
RX Full BW SU Using HE MU PPDU with Non-Compression SIGB
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x79 0x1c 0xc7 0x71 0x1c 0xc7 0x71
HE Iftypes: AP
HE MAC Capabilities (0x00011a081044):
+HTC HE Supported
BSR
OM Control
Maximum A-MPDU Length Exponent: 3
BQR
A-MSDU in A-MPDU
OM Control UL MU Data Disable RX
HE PHY Capabilities: (0x0420ce120000a000000c00):
HE40/HE80/5GHz
LDPC Coding in Payload
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
Partial Bandwidth Extended Range
PPE Threshold Present
TX 1024-QAM
RX 1024-QAM
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x79 0x1c 0xc7 0x71 0x1c 0xc7 0x71
Bitrates (non-HT):
* 6.0 Mbps
* 9.0 Mbps
* 12.0 Mbps
* 18.0 Mbps
* 24.0 Mbps
* 36.0 Mbps
* 48.0 Mbps
* 54.0 Mbps
Frequencies:
* 5955.0 MHz [1] (disabled)
* 5975.0 MHz [5] (disabled)
* 5995.0 MHz [9] (disabled)
* 6015.0 MHz [13] (disabled)
* 6035.0 MHz [17] (disabled)
* 6055.0 MHz [21] (disabled)
* 6075.0 MHz [25] (disabled)
* 6095.0 MHz [29] (disabled)
* 6115.0 MHz [33] (disabled)
* 6135.0 MHz [37] (disabled)
* 6155.0 MHz [41] (disabled)
* 6175.0 MHz [45] (disabled)
* 6195.0 MHz [49] (disabled)
* 6215.0 MHz [53] (disabled)
* 6235.0 MHz [57] (disabled)
* 6255.0 MHz [61] (disabled)
* 6275.0 MHz [65] (disabled)
* 6295.0 MHz [69] (disabled)
* 6315.0 MHz [73] (disabled)
* 6335.0 MHz [77] (disabled)
* 6355.0 MHz [81] (disabled)
* 6375.0 MHz [85] (disabled)
* 6395.0 MHz [89] (disabled)
* 6415.0 MHz [93] (disabled)
* 6435.0 MHz [97] (disabled)
* 6455.0 MHz [101] (disabled)
* 6475.0 MHz [105] (disabled)
* 6495.0 MHz [109] (disabled)
* 6515.0 MHz [113] (disabled)
* 6535.0 MHz [117] (disabled)
* 6555.0 MHz [121] (disabled)
* 6575.0 MHz [125] (disabled)
* 6595.0 MHz [129] (disabled)
* 6615.0 MHz [133] (disabled)
* 6635.0 MHz [137] (disabled)
* 6655.0 MHz [141] (disabled)
* 6675.0 MHz [145] (disabled)
* 6695.0 MHz [149] (disabled)
* 6715.0 MHz [153] (disabled)
* 6735.0 MHz [157] (disabled)
* 6755.0 MHz [161] (disabled)
* 6775.0 MHz [165] (disabled)
* 6795.0 MHz [169] (disabled)
* 6815.0 MHz [173] (disabled)
* 6835.0 MHz [177] (disabled)
* 6855.0 MHz [181] (disabled)
* 6875.0 MHz [185] (disabled)
* 6895.0 MHz [189] (disabled)
* 6915.0 MHz [193] (disabled)
* 6935.0 MHz [197] (disabled)
* 6955.0 MHz [201] (disabled)
* 6975.0 MHz [205] (disabled)
* 6995.0 MHz [209] (disabled)
* 7015.0 MHz [213] (disabled)
* 7035.0 MHz [217] (disabled)
* 7055.0 MHz [221] (disabled)
* 7075.0 MHz [225] (disabled)
* 7095.0 MHz [229] (disabled)
* 7115.0 MHz [233] (disabled)
Supported commands:
* new_interface
* set_interface
* new_key
* start_ap
* new_station
* set_bss
* authenticate
* associate
* deauthenticate
* disassociate
* join_ibss
* remain_on_channel
* set_tx_bitrate_mask
* frame
* frame_wait_cancel
* set_wiphy_netns
* set_channel
* tdls_mgmt
* tdls_oper
* start_sched_scan
* probe_client
* set_noack_map
* register_beacons
* start_p2p_device
* set_mcast_rate
* connect
* disconnect
* channel_switch
* set_qos_map
* set_multicast_to_unicast
* set_sar_specs
* Unknown command (156)
WoWLAN support:
* wake up on disconnect
* wake up on magic packet
* wake up on pattern match, up to 1 patterns of 1-128 bytes,
maximum packet offset 0 bytes
* can do GTK rekeying
* wake up on network detection, up to 10 match sets
software interface modes (can always be added):
* AP/VLAN
* monitor
valid interface combinations:
* #{ managed, P2P-client } <= 2, #{ P2P-GO } <= 1, #{ P2P-device } <= 1,
total <= 3, #channels <= 2
* #{ managed, P2P-client } <= 2, #{ AP } <= 1, #{ P2P-device } <= 1,
total <= 3, #channels <= 1
HT Capability overrides:
* MCS: ff ff ff ff ff ff ff ff ff ff
* maximum A-MSDU length
* supported channel width
* short GI for 40 MHz
* max A-MPDU length exponent
* min MPDU start spacing
Device supports TX status socket option.
Device supports HT-IBSS.
Device supports SAE with AUTHENTICATE command
Device supports scan flush.
Device supports per-vif TX power setting
P2P GO supports CT window setting
P2P GO supports opportunistic powersave setting
Driver supports full state transitions for AP/GO clients
Driver supports a userspace MPM
Device supports active monitor (which will ACK incoming frames)
Driver/device bandwidth changes during BSS lifetime (AP/GO mode)
Device supports configuring vdev MAC-addr on create.
Device supports randomizing MAC-addr in scans.
Device supports randomizing MAC-addr in sched scans.
max # scan plans: 1
max scan plan interval: 65535
max scan plan iterations: 0
Supported TX frame types:
* IBSS: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* managed: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* AP: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* AP/VLAN: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* mesh point: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* P2P-client: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* P2P-GO: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* P2P-device: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* NAN: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
Supported RX frame types:
* IBSS: 0x40 0xb0 0xc0 0xd0
* managed: 0x40 0xb0 0xd0
* AP: 0x00 0x20 0x40 0xa0 0xb0 0xc0 0xd0
* AP/VLAN: 0x00 0x20 0x40 0xa0 0xb0 0xc0 0xd0
* mesh point: 0xb0 0xc0 0xd0
* P2P-client: 0x40 0xd0
* P2P-GO: 0x00 0x20 0x40 0xa0 0xb0 0xc0 0xd0
* P2P-device: 0x40 0xb0 0xd0
* NAN: 0xb0 0xd0
Supported extended features:
* [ RRM ]: RRM
* [ SET_SCAN_DWELL ]: scan dwell setting
* [ BEACON_RATE_LEGACY ]: legacy beacon rate setting
* [ BEACON_RATE_HT ]: HT beacon rate setting
* [ BEACON_RATE_VHT ]: VHT beacon rate setting
* [ FILS_STA ]: STA FILS (Fast Initial Link Setup)
* [ CQM_RSSI_LIST ]: multiple CQM_RSSI_THOLD records
* [ CONTROL_PORT_OVER_NL80211 ]: control port over nl80211
* [ ACK_SIGNAL_SUPPORT ]: ack signal level support
* [ TXQS ]: FQ-CoDel-enabled intermediate TXQs
* [ CAN_REPLACE_PTK0 ]: can safely replace PTK 0 when rekeying
* [ AIRTIME_FAIRNESS ]: airtime fairness scheduling
* [ AQL ]: Airtime Queue Limits (AQL)
* [ CONTROL_PORT_NO_PREAUTH ]: disable pre-auth over nl80211 control port support
* [ SCAN_FREQ_KHZ ]: scan on kHz frequency support
* [ CONTROL_PORT_OVER_NL80211_TX_STATUS ]: tx status for nl80211 control port support
* [ BEACON_RATE_HE ]: HE beacon rate support (AP/mesh)
* [ POWERED_ADDR_CHANGE ]: can change MAC address while uproot@flipperone-a9438e:/home/user# iw reg get
global
country HK: DFS-ETSI
(2400 - 2483 @ 40), (N/A, 36), (N/A)
(5150 - 5250 @ 80), (N/A, 23), (N/A), NO-OUTDOOR, AUTO-BW
(5250 - 5350 @ 80), (N/A, 23), (0 ms), NO-OUTDOOR, DFS, AUTO-BW
(5470 - 5730 @ 160), (N/A, 27), (0 ms), DFS
(5730 - 5850 @ 80), (N/A, 36), (N/A)
(5925 - 6425 @ 160), (N/A, 14), (N/A)
root@flipperone-a9438e:/home/user# iw phy phy0 info
Wiphy phy0
wiphy index: 0
max # scan SSIDs: 4
max scan IEs length: 482 bytes
max # sched scan SSIDs: 10
max # match sets: 16
Retry short limit: 7
Retry long limit: 4
Coverage class: 0 (up to 0m)
Device supports AP-side u-APSD.
Device supports T-DLS.
Supported Ciphers:
* WEP40 (00-0f-ac:1)
* WEP104 (00-0f-ac:5)
* TKIP (00-0f-ac:2)
* CCMP-128 (00-0f-ac:4)
* CCMP-256 (00-0f-ac:10)
* GCMP-128 (00-0f-ac:8)
* GCMP-256 (00-0f-ac:9)
* CMAC (00-0f-ac:6)
* CMAC-256 (00-0f-ac:13)
* GMAC-128 (00-0f-ac:11)
* GMAC-256 (00-0f-ac:12)
Available Antennas: TX 0x3 RX 0x3
Configured Antennas: TX 0x3 RX 0x3
Supported interface modes:
* managed
* AP
* AP/VLAN
* monitor
* P2P-client
* P2P-GO
* P2P-device
Band 1:
Capabilities: 0x9ff
RX LDPC
HT20/HT40
SM Power Save disabled
RX Greenfield
RX HT20 SGI
RX HT40 SGI
TX STBC
RX STBC 1-stream
Max AMSDU length: 7935 bytes
No DSSS/CCK HT40
Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
Minimum RX AMPDU time spacing: No restriction (0x00)
HT TX/RX MCS rate indexes supported: 0-15
HE Iftypes: managed
HE MAC Capabilities (0x08011a000040):
+HTC HE Supported
Trigger Frame MAC Padding Duration: 2
OM Control
Maximum A-MPDU Length Exponent: 3
A-MSDU in A-MPDU
HE PHY Capabilities: (0x2270ce120dc0b306423f00):
HE40/2.4GHz
242 tone RUs/2.4GHz
Device Class: 1
LDPC Coding in Payload
HE SU PPDU with 1x HE-LTF and 0.8us GI
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
SU Beamformee
Beamformee STS <= 80Mhz: 3
Ng = 16 SU Feedback
Ng = 16 MU Feedback
Codebook Size SU Feedback
Codebook Size MU Feedback
Triggered CQI Feedback
Partial Bandwidth Extended Range
PPE Threshold Present
Power Boost Factor ar
HE SU PPDU & HE PPDU 4x HE-LTF 0.8us GI
20MHz in 40MHz HE PPDU 2.4GHz
DCM Max BW: 1
Longer Than 16HE SIG-B OFDM Symbols
Non-Triggered CQI Feedback
TX 1024-QAM
RX 1024-QAM
RX Full BW SU Using HE MU PPDU with Compression SIGB
RX Full BW SU Using HE MU PPDU with Non-Compression SIGB
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x19 0x1c 0xc7 0x71
HE Iftypes: AP
HE MAC Capabilities (0x00011a081044):
+HTC HE Supported
BSR
OM Control
Maximum A-MPDU Length Exponent: 3
BQR
A-MSDU in A-MPDU
OM Control UL MU Data Disable RX
HE PHY Capabilities: (0x0220ce120000a000000c00):
HE40/2.4GHz
LDPC Coding in Payload
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
Partial Bandwidth Extended Range
PPE Threshold Present
TX 1024-QAM
RX 1024-QAM
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x19 0x1c 0xc7 0x71
Bitrates (non-HT):
* 1.0 Mbps (short preamble supported)
* 2.0 Mbps (short preamble supported)
* 5.5 Mbps (short preamble supported)
* 11.0 Mbps (short preamble supported)
* 6.0 Mbps
* 9.0 Mbps
* 12.0 Mbps
* 18.0 Mbps
* 24.0 Mbps
* 36.0 Mbps
* 48.0 Mbps
* 54.0 Mbps
Frequencies:
* 2412.0 MHz [1] (30.0 dBm)
* 2417.0 MHz [2] (30.0 dBm)
* 2422.0 MHz [3] (30.0 dBm)
* 2427.0 MHz [4] (30.0 dBm)
* 2432.0 MHz [5] (30.0 dBm)
* 2437.0 MHz [6] (30.0 dBm)
* 2442.0 MHz [7] (30.0 dBm)
* 2447.0 MHz [8] (30.0 dBm)
* 2452.0 MHz [9] (30.0 dBm)
* 2457.0 MHz [10] (30.0 dBm)
* 2462.0 MHz [11] (30.0 dBm)
* 2467.0 MHz [12] (30.0 dBm)
* 2472.0 MHz [13] (30.0 dBm)
* 2484.0 MHz [14] (disabled)
Band 2:
Capabilities: 0x9ff
RX LDPC
HT20/HT40
SM Power Save disabled
RX Greenfield
RX HT20 SGI
RX HT40 SGI
TX STBC
RX STBC 1-stream
Max AMSDU length: 7935 bytes
No DSSS/CCK HT40
Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
Minimum RX AMPDU time spacing: No restriction (0x00)
HT TX/RX MCS rate indexes supported: 0-15
VHT Capabilities (0x339071b2):
Max MPDU length: 11454
Supported Channel Width: neither 160 nor 80+80
RX LDPC
short GI (80 MHz)
TX STBC
SU Beamformee
MU Beamformee
RX antenna pattern consistency
TX antenna pattern consistency
VHT RX MCS set:
1 streams: MCS 0-9
2 streams: MCS 0-9
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
VHT RX highest supported: 0 Mbps
VHT TX MCS set:
1 streams: MCS 0-9
2 streams: MCS 0-9
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
VHT TX highest supported: 0 Mbps
VHT extended NSS: supported
HE Iftypes: managed
HE MAC Capabilities (0x08011a000040):
+HTC HE Supported
Trigger Frame MAC Padding Duration: 2
OM Control
Maximum A-MPDU Length Exponent: 3
A-MSDU in A-MPDU
HE PHY Capabilities: (0x4470ce120dc0b306423f00):
HE40/HE80/5GHz
242 tone RUs/5GHz
Device Class: 1
LDPC Coding in Payload
HE SU PPDU with 1x HE-LTF and 0.8us GI
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
SU Beamformee
Beamformee STS <= 80Mhz: 3
Ng = 16 SU Feedback
Ng = 16 MU Feedback
Codebook Size SU Feedback
Codebook Size MU Feedback
Triggered CQI Feedback
Partial Bandwidth Extended Range
PPE Threshold Present
Power Boost Factor ar
HE SU PPDU & HE PPDU 4x HE-LTF 0.8us GI
20MHz in 40MHz HE PPDU 2.4GHz
DCM Max BW: 1
Longer Than 16HE SIG-B OFDM Symbols
Non-Triggered CQI Feedback
TX 1024-QAM
RX 1024-QAM
RX Full BW SU Using HE MU PPDU with Compression SIGB
RX Full BW SU Using HE MU PPDU with Non-Compression SIGB
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x79 0x1c 0xc7 0x71 0x1c 0xc7 0x71
HE Iftypes: AP
HE MAC Capabilities (0x00011a081044):
+HTC HE Supported
BSR
OM Control
Maximum A-MPDU Length Exponent: 3
BQR
A-MSDU in A-MPDU
OM Control UL MU Data Disable RX
HE PHY Capabilities: (0x0420ce120000a000000c00):
HE40/HE80/5GHz
LDPC Coding in Payload
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
Partial Bandwidth Extended Range
PPE Threshold Present
TX 1024-QAM
RX 1024-QAM
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x79 0x1c 0xc7 0x71 0x1c 0xc7 0x71
Bitrates (non-HT):
* 6.0 Mbps
* 9.0 Mbps
* 12.0 Mbps
* 18.0 Mbps
* 24.0 Mbps
* 36.0 Mbps
* 48.0 Mbps
* 54.0 Mbps
Frequencies:
* 5180.0 MHz [36] (23.0 dBm)
* 5200.0 MHz [40] (23.0 dBm)
* 5220.0 MHz [44] (23.0 dBm)
* 5240.0 MHz [48] (23.0 dBm)
* 5260.0 MHz [52] (23.0 dBm) (radar detection)
* 5280.0 MHz [56] (23.0 dBm) (radar detection)
* 5300.0 MHz [60] (23.0 dBm) (radar detection)
* 5320.0 MHz [64] (23.0 dBm) (radar detection)
* 5500.0 MHz [100] (27.0 dBm) (radar detection)
* 5520.0 MHz [104] (27.0 dBm) (radar detection)
* 5540.0 MHz [108] (27.0 dBm) (radar detection)
* 5560.0 MHz [112] (27.0 dBm) (radar detection)
* 5580.0 MHz [116] (27.0 dBm) (radar detection)
* 5600.0 MHz [120] (27.0 dBm) (radar detection)
* 5620.0 MHz [124] (27.0 dBm) (radar detection)
* 5640.0 MHz [128] (27.0 dBm) (radar detection)
* 5660.0 MHz [132] (27.0 dBm) (radar detection)
* 5680.0 MHz [136] (27.0 dBm) (radar detection)
* 5700.0 MHz [140] (27.0 dBm) (radar detection)
* 5720.0 MHz [144] (27.0 dBm) (radar detection)
* 5745.0 MHz [149] (30.0 dBm)
* 5765.0 MHz [153] (30.0 dBm)
* 5785.0 MHz [157] (30.0 dBm)
* 5805.0 MHz [161] (30.0 dBm)
* 5825.0 MHz [165] (30.0 dBm)
* 5845.0 MHz [169] (disabled)
* 5865.0 MHz [173] (disabled)
* 5885.0 MHz [177] (disabled)
Band 4:
HE Iftypes: managed
HE MAC Capabilities (0x08011a000040):
+HTC HE Supported
Trigger Frame MAC Padding Duration: 2
OM Control
Maximum A-MPDU Length Exponent: 3
A-MSDU in A-MPDU
HE PHY Capabilities: (0x4470ce120dc0b306423f00):
HE40/HE80/5GHz
242 tone RUs/5GHz
Device Class: 1
LDPC Coding in Payload
HE SU PPDU with 1x HE-LTF and 0.8us GI
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
SU Beamformee
Beamformee STS <= 80Mhz: 3
Ng = 16 SU Feedback
Ng = 16 MU Feedback
Codebook Size SU Feedback
Codebook Size MU Feedback
Triggered CQI Feedback
Partial Bandwidth Extended Range
PPE Threshold Present
Power Boost Factor ar
HE SU PPDU & HE PPDU 4x HE-LTF 0.8us GI
20MHz in 40MHz HE PPDU 2.4GHz
DCM Max BW: 1
Longer Than 16HE SIG-B OFDM Symbols
Non-Triggered CQI Feedback
TX 1024-QAM
RX 1024-QAM
RX Full BW SU Using HE MU PPDU with Compression SIGB
RX Full BW SU Using HE MU PPDU with Non-Compression SIGB
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x79 0x1c 0xc7 0x71 0x1c 0xc7 0x71
HE Iftypes: AP
HE MAC Capabilities (0x00011a081044):
+HTC HE Supported
BSR
OM Control
Maximum A-MPDU Length Exponent: 3
BQR
A-MSDU in A-MPDU
OM Control UL MU Data Disable RX
HE PHY Capabilities: (0x0420ce120000a000000c00):
HE40/HE80/5GHz
LDPC Coding in Payload
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
Partial Bandwidth Extended Range
PPE Threshold Present
TX 1024-QAM
RX 1024-QAM
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x79 0x1c 0xc7 0x71 0x1c 0xc7 0x71
Bitrates (non-HT):
* 6.0 Mbps
* 9.0 Mbps
* 12.0 Mbps
* 18.0 Mbps
* 24.0 Mbps
* 36.0 Mbps
* 48.0 Mbps
* 54.0 Mbps
Frequencies:
* 5955.0 MHz [1] (14.0 dBm)
* 5975.0 MHz [5] (14.0 dBm)
* 5995.0 MHz [9] (14.0 dBm)
* 6015.0 MHz [13] (14.0 dBm)
* 6035.0 MHz [17] (14.0 dBm)
* 6055.0 MHz [21] (14.0 dBm)
* 6075.0 MHz [25] (14.0 dBm)
* 6095.0 MHz [29] (14.0 dBm)
* 6115.0 MHz [33] (14.0 dBm)
* 6135.0 MHz [37] (14.0 dBm)
* 6155.0 MHz [41] (14.0 dBm)
* 6175.0 MHz [45] (14.0 dBm)
* 6195.0 MHz [49] (14.0 dBm)
* 6215.0 MHz [53] (14.0 dBm)
* 6235.0 MHz [57] (14.0 dBm)
* 6255.0 MHz [61] (14.0 dBm)
* 6275.0 MHz [65] (14.0 dBm)
* 6295.0 MHz [69] (14.0 dBm)
* 6315.0 MHz [73] (14.0 dBm)
* 6335.0 MHz [77] (14.0 dBm)
* 6355.0 MHz [81] (14.0 dBm)
* 6375.0 MHz [85] (14.0 dBm)
* 6395.0 MHz [89] (14.0 dBm)
* 6415.0 MHz [93] (14.0 dBm)
* 6435.0 MHz [97] (disabled)
* 6455.0 MHz [101] (disabled)
* 6475.0 MHz [105] (disabled)
* 6495.0 MHz [109] (disabled)
* 6515.0 MHz [113] (disabled)
* 6535.0 MHz [117] (disabled)
* 6555.0 MHz [121] (disabled)
* 6575.0 MHz [125] (disabled)
* 6595.0 MHz [129] (disabled)
* 6615.0 MHz [133] (disabled)
* 6635.0 MHz [137] (disabled)
* 6655.0 MHz [141] (disabled)
* 6675.0 MHz [145] (disabled)
* 6695.0 MHz [149] (disabled)
* 6715.0 MHz [153] (disabled)
* 6735.0 MHz [157] (disabled)
* 6755.0 MHz [161] (disabled)
* 6775.0 MHz [165] (disabled)
* 6795.0 MHz [169] (disabled)
* 6815.0 MHz [173] (disabled)
* 6835.0 MHz [177] (disabled)
* 6855.0 MHz [181] (disabled)
* 6875.0 MHz [185] (disabled)
* 6895.0 MHz [189] (disabled)
* 6915.0 MHz [193] (disabled)
* 6935.0 MHz [197] (disabled)
* 6955.0 MHz [201] (disabled)
* 6975.0 MHz [205] (disabled)
* 6995.0 MHz [209] (disabled)
* 7015.0 MHz [213] (disabled)
* 7035.0 MHz [217] (disabled)
* 7055.0 MHz [221] (disabled)
* 7075.0 MHz [225] (disabled)
* 7095.0 MHz [229] (disabled)
* 7115.0 MHz [233] (disabled)
Supported commands:
* new_interface
* set_interface
* new_key
* start_ap
* new_station
* set_bss
* authenticate
* associate
* deauthenticate
* disassociate
* join_ibss
* remain_on_channel
* set_tx_bitrate_mask
* frame
* frame_wait_cancel
* set_wiphy_netns
* set_channel
* tdls_mgmt
* tdls_oper
* start_sched_scan
* probe_client
* set_noack_map
* register_beacons
* start_p2p_device
* set_mcast_rate
* connect
* disconnect
* channel_switch
* set_qos_map
* set_multicast_to_unicast
* set_sar_specs
* Unknown command (156)
WoWLAN support:
* wake up on disconnect
* wake up on magic packet
* wake up on pattern match, up to 1 patterns of 1-128 bytes,
maximum packet offset 0 bytes
* can do GTK rekeying
* wake up on network detection, up to 10 match sets
software interface modes (can always be added):
* AP/VLAN
* monitor
valid interface combinations:
* #{ managed, P2P-client } <= 2, #{ P2P-GO } <= 1, #{ P2P-device } <= 1,
total <= 3, #channels <= 2
* #{ managed, P2P-client } <= 2, #{ AP } <= 1, #{ P2P-device } <= 1,
total <= 3, #channels <= 1
HT Capability overrides:
* MCS: ff ff ff ff ff ff ff ff ff ff
* maximum A-MSDU length
* supported channel width
* short GI for 40 MHz
* max A-MPDU length exponent
* min MPDU start spacing
Device supports TX status socket option.
Device supports HT-IBSS.
Device supports SAE with AUTHENTICATE command
Device supports scan flush.
Device supports per-vif TX power setting
P2P GO supports CT window setting
P2P GO supports opportunistic powersave setting
Driver supports full state transitions for AP/GO clients
Driver supports a userspace MPM
Device supports active monitor (which will ACK incoming frames)
Driver/device bandwidth changes during BSS lifetime (AP/GO mode)
Device supports configuring vdev MAC-addr on create.
Device supports randomizing MAC-addr in scans.
Device supports randomizing MAC-addr in sched scans.
max # scan plans: 1
max scan plan interval: 65535
max scan plan iterations: 0
Supported TX frame types:
* IBSS: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* managed: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* AP: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* AP/VLAN: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* mesh point: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* P2P-client: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* P2P-GO: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* P2P-device: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* NAN: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
Supported RX frame types:
* IBSS: 0x40 0xb0 0xc0 0xd0
* managed: 0x40 0xb0 0xd0
* AP: 0x00 0x20 0x40 0xa0 0xb0 0xc0 0xd0
* AP/VLAN: 0x00 0x20 0x40 0xa0 0xb0 0xc0 0xd0
* mesh point: 0xb0 0xc0 0xd0
* P2P-client: 0x40 0xd0
* P2P-GO: 0x00 0x20 0x40 0xa0 0xb0 0xc0 0xd0
* P2P-device: 0x40 0xb0 0xd0
* NAN: 0xb0 0xd0
Supported extended features:
* [ RRM ]: RRM
* [ SET_SCAN_DWELL ]: scan dwell setting
* [ BEACON_RATE_LEGACY ]: legacy beacon rate setting
* [ BEACON_RATE_HT ]: HT beacon rate setting
* [ BEACON_RATE_VHT ]: VHT beacon rate setting
* [ FILS_STA ]: STA FILS (Fast Initial Link Setup)
* [ CQM_RSSI_LIST ]: multiple CQM_RSSI_THOLD records
* [ CONTROL_PORT_OVER_NL80211 ]: control port over nl80211
* [ ACK_SIGNAL_SUPPORT ]: ack signal level support
* [ TXQS ]: FQ-CoDel-enabled intermediate TXQs
* [ CAN_REPLACE_PTK0 ]: can safely replace PTK 0 when rekeying
* [ AIRTIME_FAIRNESS ]: airtime fairness scheduling
* [ AQL ]: Airtime Queue Limits (AQL)
* [ CONTROL_PORT_NO_PREAUTH ]: disable pre-auth over nl80211 control port support
* [ SCAN_FREQ_KHZ ]: scan on kHz frequency support
* [ CONTROL_PORT_OVER_NL80211_TX_STATUS ]: tx status for nl80211 control port support
* [ BEACON_RATE_HE ]: HE beacon rate support (AP/mesh)
* [ POWERED_ADDR_CHANGE ]: can change MAC address while up$ sudo lsusb -v -d 0e8d:7961
Bus 002 Device 003: ID 0e8d:7961 MediaTek Inc. Wireless_Device
Negotiated speed: SuperSpeed (5Gbps)
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 3.20
bDeviceClass 239 Miscellaneous Device
bDeviceSubClass 2 [unknown]
bDeviceProtocol 1 Interface Association
bMaxPacketSize0 9
idVendor 0x0e8d MediaTek Inc.
idProduct 0x7961 Wireless_Device
bcdDevice 1.00
iManufacturer 6 MediaTek Inc.
iProduct 7 Wireless_Device
iSerial 8 000000000
bNumConfigurations 1
Configuration Descriptor:
bLength 9
bDescriptorType 2
wTotalLength 0x0214
bNumInterfaces 4
bConfigurationValue 1
iConfiguration 9 Config_01
bmAttributes 0xa0
(Bus Powered)
Remote Wakeup
MaxPower 160mA
Interface Association:
bLength 8
bDescriptorType 11
bFirstInterface 0
bInterfaceCount 3
bFunctionClass 224 Wireless
bFunctionSubClass 1 Radio Frequency
bFunctionProtocol 1 Bluetooth
iFunction 5 BT_FUNCTION
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 0
bAlternateSetting 0
bNumEndpoints 5
bInterfaceClass 224 Wireless
bInterfaceSubClass 1 Radio Frequency
bInterfaceProtocol 1 Bluetooth
iInterface 1 BT_ACL_If
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0040 1x 64 bytes
bInterval 1
bMaxBurst 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x01 EP 1 OUT
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0400 1x 1024 bytes
bInterval 0
bMaxBurst 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x82 EP 2 IN
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0400 1x 1024 bytes
bInterval 0
bMaxBurst 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x02 EP 2 OUT
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0400 1x 1024 bytes
bInterval 0
bMaxBurst 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x8f EP 15 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0002 1x 2 bytes
bInterval 1
bMaxBurst 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 0
bNumEndpoints 2
bInterfaceClass 224 Wireless
bInterfaceSubClass 1 Radio Frequency
bInterfaceProtocol 1 Bluetooth
iInterface 2 BT_SCO_If
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x83 EP 3 IN
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0000 1x 0 bytes
bInterval 4
bMaxBurst 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x03 EP 3 OUT
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0000 1x 0 bytes
bInterval 4
bMaxBurst 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 1
bNumEndpoints 2
bInterfaceClass 224 Wireless
bInterfaceSubClass 1 Radio Frequency
bInterfaceProtocol 1 Bluetooth
iInterface 2 BT_SCO_If
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x83 EP 3 IN
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0009 1x 9 bytes
bInterval 4
bMaxBurst 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x03 EP 3 OUT
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0009 1x 9 bytes
bInterval 4
bMaxBurst 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 2
bNumEndpoints 2
bInterfaceClass 224 Wireless
bInterfaceSubClass 1 Radio Frequency
bInterfaceProtocol 1 Bluetooth
iInterface 2 BT_SCO_If
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x83 EP 3 IN
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0011 1x 17 bytes
bInterval 4
bMaxBurst 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x03 EP 3 OUT
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0011 1x 17 bytes
bInterval 4
bMaxBurst 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 3
bNumEndpoints 2
bInterfaceClass 224 Wireless
bInterfaceSubClass 1 Radio Frequency
bInterfaceProtocol 1 Bluetooth
iInterface 2 BT_SCO_If
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x83 EP 3 IN
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0019 1x 25 bytes
bInterval 4
bMaxBurst 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x03 EP 3 OUT
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0019 1x 25 bytes
bInterval 4
bMaxBurst 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 4
bNumEndpoints 2
bInterfaceClass 224 Wireless
bInterfaceSubClass 1 Radio Frequency
bInterfaceProtocol 1 Bluetooth
iInterface 2 BT_SCO_If
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x83 EP 3 IN
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0021 1x 33 bytes
bInterval 4
bMaxBurst 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x03 EP 3 OUT
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0021 1x 33 bytes
bInterval 4
bMaxBurst 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 5
bNumEndpoints 2
bInterfaceClass 224 Wireless
bInterfaceSubClass 1 Radio Frequency
bInterfaceProtocol 1 Bluetooth
iInterface 2 BT_SCO_If
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x83 EP 3 IN
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0031 1x 49 bytes
bInterval 4
bMaxBurst 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x03 EP 3 OUT
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0031 1x 49 bytes
bInterval 4
bMaxBurst 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 6
bNumEndpoints 2
bInterfaceClass 224 Wireless
bInterfaceSubClass 1 Radio Frequency
bInterfaceProtocol 1 Bluetooth
iInterface 2 BT_SCO_If
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x83 EP 3 IN
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x003f 1x 63 bytes
bInterval 4
bMaxBurst 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x03 EP 3 OUT
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x003f 1x 63 bytes
bInterval 4
bMaxBurst 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 2
bAlternateSetting 0
bNumEndpoints 2
bInterfaceClass 224 Wireless
bInterfaceSubClass 1 Radio Frequency
bInterfaceProtocol 1 Bluetooth
iInterface 3 BT_ISO_If
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x8a EP 10 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0040 1x 64 bytes
bInterval 1
bMaxBurst 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x0a EP 10 OUT
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0040 1x 64 bytes
bInterval 1
bMaxBurst 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 2
bAlternateSetting 1
bNumEndpoints 2
bInterfaceClass 224 Wireless
bInterfaceSubClass 1 Radio Frequency
bInterfaceProtocol 1 Bluetooth
iInterface 3 BT_ISO_If
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x8a EP 10 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0200 1x 512 bytes
bInterval 1
bMaxBurst 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x0a EP 10 OUT
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0200 1x 512 bytes
bInterval 1
bMaxBurst 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 3
bAlternateSetting 0
bNumEndpoints 9
bInterfaceClass 255 Vendor Specific Class
bInterfaceSubClass 255 Vendor Specific Subclass
bInterfaceProtocol 255 Vendor Specific Protocol
iInterface 4 WiFi_If
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x84 EP 4 IN
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0400 1x 1024 bytes
bInterval 0
bMaxBurst 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x85 EP 5 IN
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0400 1x 1024 bytes
bInterval 0
bMaxBurst 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x08 EP 8 OUT
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0400 1x 1024 bytes
bInterval 0
bMaxBurst 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x04 EP 4 OUT
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0400 1x 1024 bytes
bInterval 0
bMaxBurst 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x05 EP 5 OUT
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0400 1x 1024 bytes
bInterval 0
bMaxBurst 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x06 EP 6 OUT
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0400 1x 1024 bytes
bInterval 0
bMaxBurst 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x07 EP 7 OUT
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0400 1x 1024 bytes
bInterval 0
bMaxBurst 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x09 EP 9 OUT
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0400 1x 1024 bytes
bInterval 0
bMaxBurst 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x86 EP 6 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0002 1x 2 bytes
bInterval 1
bMaxBurst 0
Binary Object Store Descriptor:
bLength 5
bDescriptorType 15
wTotalLength 0x0016
bNumDeviceCaps 2
USB 2.0 Extension Device Capability:
bLength 7
bDescriptorType 16
bDevCapabilityType 2
bmAttributes 0x0000f11e
BESL Link Power Management (LPM) Supported
BESL value 256 us
Deep BESL value 61440 us
SuperSpeed USB Device Capability:
bLength 10
bDescriptorType 16
bDevCapabilityType 3
bmAttributes 0x00
wSpeedsSupported 0x000e
Device can operate at Full Speed (12Mbps)
Device can operate at High Speed (480Mbps)
Device can operate at SuperSpeed (5Gbps)
bFunctionalitySupport 1
Lowest fully-functional device speed is Full Speed (12Mbps)
bU1DevExitLat 10 micro seconds
bU2DevExitLat 180 micro seconds
Device Status: 0x0000
(Bus Powered)$ dmesg | grep mt7
[ 12.972161] usbcore: registered new interface driver mt7921u
[ 12.975915] mt7921u 2-1.1:1.3: HW/SW Version: 0x8a108a10, Build Time: 20260224110909a
[ 13.233001] mt7921u 2-1.1:1.3: WM Firmware Version: ____010000, Build Time: 20260224110949
[ 14.869033] mt7921u 2-1.1:1.3 wlxb06b11673ade: renamed from wlan0
[ 43.432790] mt7921u 2-1.1:1.3 wlxb06b11673ade: entered allmulticast mode
[ 43.433616] mt7921u 2-1.1:1.3 wlxb06b11673ade: entered promiscuous modeHave a question?
Our support team and an awesome community will get you an answer in a flash. Please leave your questions in English.
To ask a question or participate in discussions, you'll need to authenticate first.
